Cutting machine KN–200 and KN-D 11

The cutting machines KN–200 and KN-D 11 are designed for grinding of different input material like dry fruits, peels (orange, lemon), various types of herbs and thin roots.

The difference between these two machines is the number of knives – KN-200 has one set of radially set blades, and KN-D 11 has two sets of radially set blades.

The output product is in shape of rectangle. The desirable size of the output product is defined by the size of the knives and can be 6, 8 or 10 mm. The quality of the input material also could affect which set of knives will be used. The advantage of this machine is that produce a small percentage of dust and the output product is has unified dimensions.

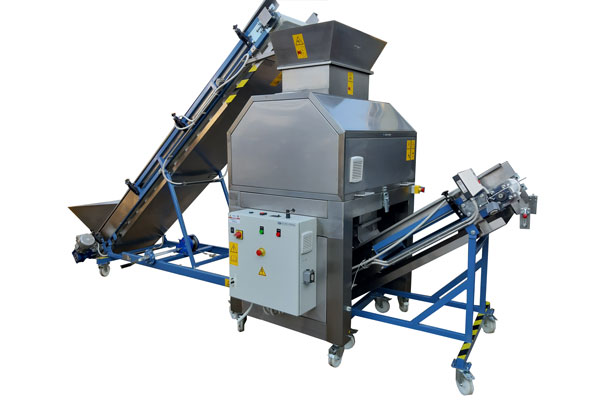

Cutting machine KN - 200

Material is loaded directly into the machine by belt conveyor VARIO 306. After the grinding, output product is transported by belt conveyor VARIO 404 to further processing (calibration or cleaning).

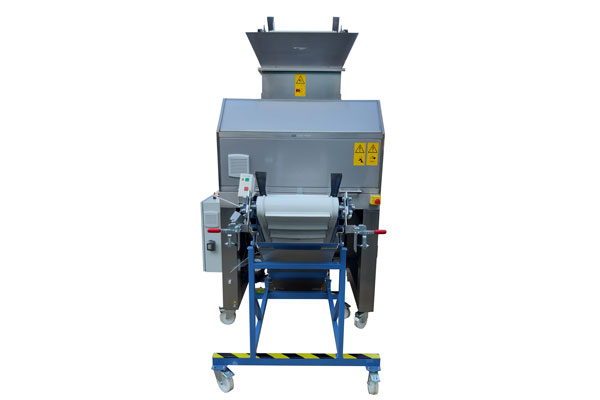

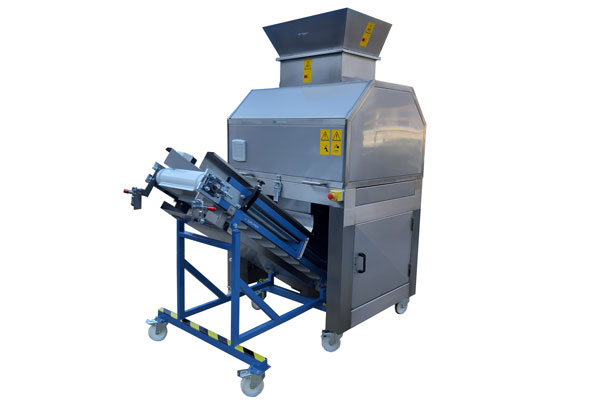

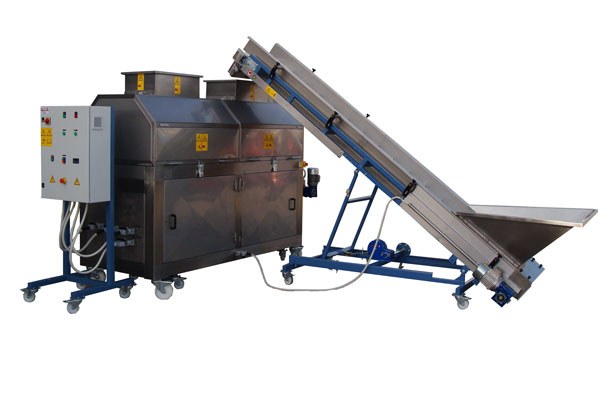

Cutting machine KN-D 11

The machine has four radially set blades, and provides a possibility to produce two different fractions of the output material, without need to change the knives, because of two input openings.

Material is loaded directly into the machine by belt conveyor VARIO 306. After the grinding, output product is transported by belt conveyor 306 out of machine for further processing or packing.

With electric cabinet each segment of the machine and input/output belt conveyors are controled. If in any case, machine blocks, by rotating the working organ in the opposite direction, the cause of the jam is automatically removed.
